technical parameter： |
Product function: |
-
The UV lamp power: 6.0KW*2 (UV lamp)
Total length of UV lamp: 930mm arc length: 800mm
UV band main wave crest: 365nm
A UV configuration
Strong and weak light regulation: 50%, 100%
Sheet metal lamp box installation imported insert reflector
The exhaust system
Material: Teflon mesh belt conveyor
Conveyor belt width: 800m
Conveying speed: 0-8m/min
Inlet height: 100mm
Power supply: 50HZ 380VAC
|
-
UV glazing is a technical term in the printing industry, mainly is refers to the printing products late, called print seemed to be attached to a layer of "oil", so called "oil", not fried mean oh! UV glazing is UV glazing. It is with special UV paint to precision, evenly coated in print or local area, ultraviolet irradiation, at breakneck speed stem bath hardening and, for \ package cover, referred to as: polishing bright. UV glazing material after the surface of the light, but more brittle, prone to cracks! Very good quality light oil glazing, Bimei film. General export commodities, not to be covered with plastic film, so UV varnish, is a very suitable treatment method.
Optional configuration, can be customized according to customer demand
|
|
model
|
Outer dimension(Length*width*high）mm
|
Length of feeding zone
mm
|
Length of discharge zone
mm
|
Conveyor belt width
mm
|
UV lamp power
kw
|
|

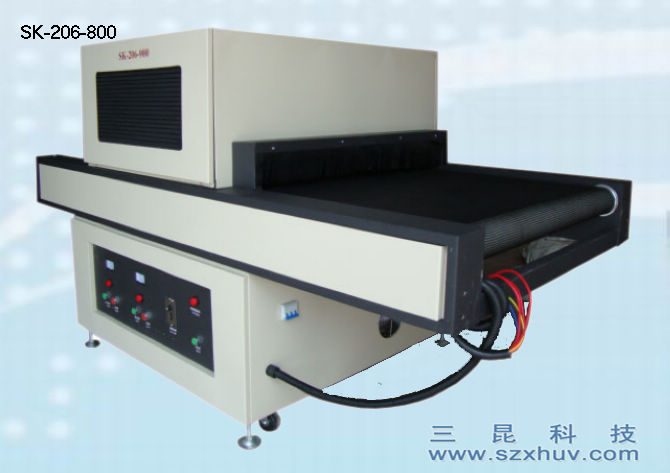

SK-206-800
|
2000*950*1450
|
850
|
450
|
800
|
6.0kw*2 |
(Note: all UV machine can according to customer requirements with non-standard customized, welcome to negotiate CONSULTATION!)
|
|
technical parameter： |
Product function： |
-
UV lamp： 2KW*1PCS
-
Light emitting body（Effective radiation width）:20mm
-
UV Distance from light transmission belt can be adjusted：0-120mm
-
UV lamp power density：100W/CM
-
UVLight intensity can be adjusted： 100%；
-
Reflecting cover： Aluminum reflector with built-in reflective aluminum reflector, high efficiency, long service life；
-
Conveyor belt width：200mm；
-
Conveyor belt material：Teflon mesh belt
-
Conveying speed：1-10m Stepless adjustable
-
Cooling mode: air cooling
-
Appearance: white and black grey with computer
-
Power：220VAC 50HZ
|
-
Application: This equipment is suitable for the electric UV UV UV ink, glue, UV coating experimental models;
Plastic products, electronic products, toys industry, printing industry and other UV light curing equipment。
-
Sankun Technology Shenzhen standard off the shelf UV machine configuration standardization, stable performance, high price, perennial spot; for you to save manufacturing time, carefully designed, the intentions of services; 2KW*1 group of lights 201
-
Optional configuration, can be customized according to customer demand
|
|
model
|
Outer dimension(Length*width*high）mm
|
Length of feeding zone
mm
|
Length of discharge zone
mm
|
Conveyor belt width
mm
|
UV lamp power
kw
|
|
SK-102-200
|
1250*450*1200
|
250
|
250
|
200
|
2kw*1 |
remarks：（All the machine can according to customer requirements with non-standard customized, welcome to negotiate CONSULTATION�。�
|
Control system matching
|
|
Common button control |
interface |
|
UV lamp matching
|
|
Domestic UV lamp (mercury lamp, halogen lamp etc.) |
Imported UV lamp (mercury lamp, halogen lamp, etc.) |
|
Transformer selection (not detailed, welcome to inquire)
|
|
Copper wire |
aluminum steel |
|
Conveyor belt selection
|
|
Stainless steel mesh belt
|
Wangdai
|
Roller conveyor |
|
PCB special conveyor chain
|
Roller conveyor
|
PVC conveyor belt |
|
Non-standard custom delivery system
|
|
|
|
Cooling system matching
|
|
Air cooling
|
refrigeration
|
water-cooling
|
|
|
